Page 2 of 2
Re: Fisher Wireless TeamTalk - Motorola Capacity Max System (Network S9) - Site Info - FCC Info
Posted: Tue Jul 25, 2023 7:34 pm
by mike
I have not heard any traffic on those systems but I am on the older Fisher system.
Re: Fisher Wireless TeamTalk - Motorola Capacity Max System (Network S9) - Site Info - FCC Info
Posted: Wed Jul 10, 2024 3:22 pm
by Motrac Era
You said:
Site 2 is definitely Mt Soledad.
Site 3 is definitely Mt Woodson (not Mt Otay in my previous post, sorry!).
Site 4 is definitely Palomar Mountain.
Still no indication of where S9-1 might be - perhaps it’s on a rack in their shop connected to a dummy load and that’s why we can’t find it…
===

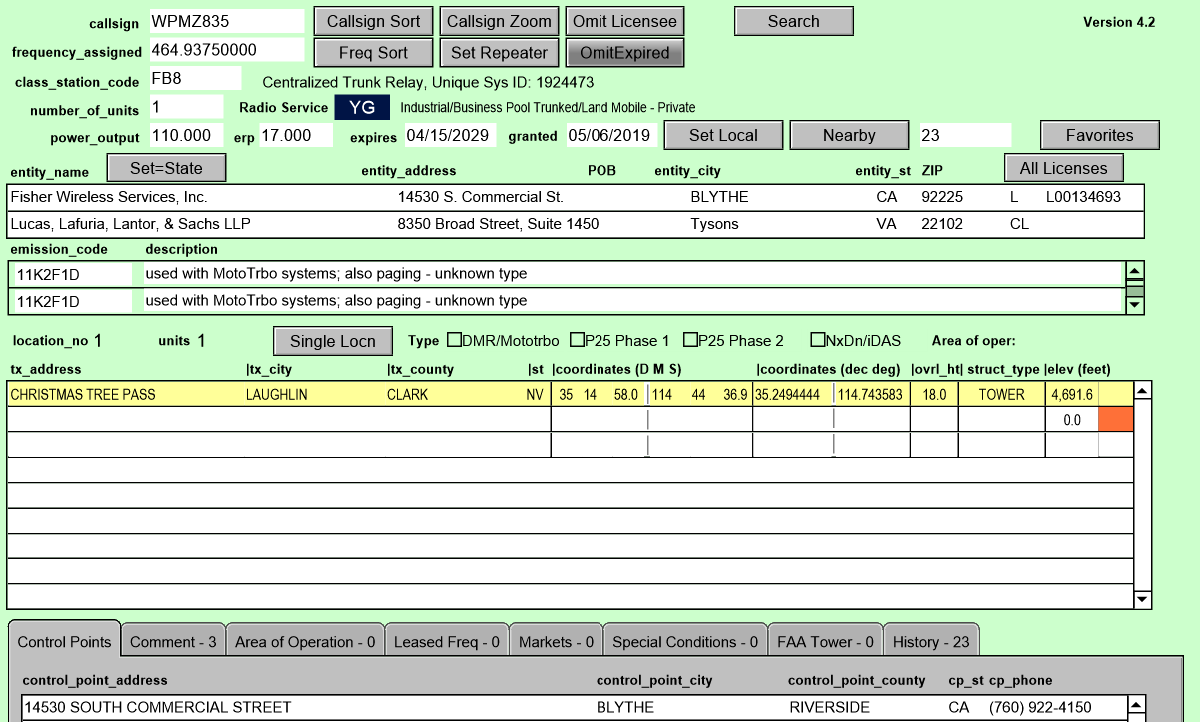

I say: Site 1 is way out in Christmas Tree Pass WPMZ835.
From my file:
- SCREEN 1.png (75.96 KiB) Viewed 24466 times
Re: Fisher Wireless TeamTalk - Motorola Capacity Max System (Network S9) - Site Info - FCC Info
Posted: Tue Apr 15, 2025 8:51 pm
by mike
454.5125 CC 3 DMRT3 Slot 2 heard control channel in El Cajon
Re: Fisher Wireless TeamTalk - Motorola Capacity Max System (Network S9) - Site Info - FCC Info
Posted: Tue Apr 15, 2025 9:14 pm
by Brian
Good find!
454.5125 DCC:3 showing as Site: L13-1.4 TIII Std [Auto] (HYT) per DSD+ software.
This other site still on the air.
454.13125cc, DMR Tier III(MOT), color code 3, site S9-3 - Location: Mt Otay
-----------------------------------------------------
452.0125 - Control Channel
2026/04/15 20:49:17 Current network: H2
2026/04/15 20:49:17 Current site: H2-1.8
2026/04/15 20:49:17 DCC=10 No data for current site found in DSDPlus.frequencies file
2026/04/15 20:49:22 DCC=10 H2-1.8 neighbor: Site H2-1.8; CC=129
2026/04/15 20:49:28 DCC=10 H2-1.8 neighbor: Site H2-2.5; CC=167
---------------------------------------------------
454.13125 - Control Channel
2026/04/15 19:13:39 Current network: S9
2026/04/15 19:13:39 Current site: S9-3
-----------------------------------------------------
Possible Others:
451.7250
454.01875
454.04375
454.11875
454.50625
454.5125
454.53125
454.54375
--------------------------------------------------------
Re: Fisher Wireless TeamTalk - Motorola Capacity Max System (Network S9) - Site Info - FCC Info
Posted: Wed Nov 19, 2025 6:14 am
by mike
454.13125 Site 03 DMR T3 CC 3 LCN 14
System status DMRT3
454.50625 Site 007 CC 10 T3
Network ID : 00001h
Site ID: 0007
Freqs: 1
Color Code : 10
Re: Fisher Wireless TeamTalk - Motorola Capacity Max System (Network S9) - Site Info - FCC Info
Posted: Mon Mar 16, 2026 4:29 pm
by mike
452.0125 Site 007 CC 10 DMR T3 new strongly from the middle of El Cajon no activity on it so far I cannot even get the LCN with analyze in my SDS100.
